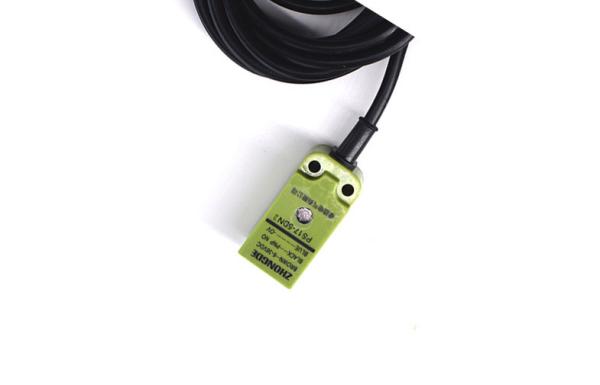

High Reliability Safety Proximity Switch With Multiple Protection Function
Description
This safety proximity switch can detect a variety of metals. It has miniature size, long life, low price, shielded type installation, excellent anti-interference ability.
Parameter
| Lag distance |
Less than 10% of the detection distance |
| Detecting objects |
Magnetic metal (detection distance is reduced when non-magnetic metal) |
| voltage |
DC : DC 12~24 (6~36V) pulse (p-p) below 10% |
| AC : AC 110~220V (36~250V) 50/60Hz |
| Current consumption |
N.P : ≤13mA |
| D : ≤0.8mA |
| A : ≤1.7mA |
| Control output |
N.P : ≤300mA |
| D : ≤200mA |
| A : ≤400mA |
| Loop protection |
N.P.D : reverse connection protection, surge absorption, load short circuit protection |
| A : surge absorption |
| Ambient temperature |
-30~+65°C (no icing, no condensation) |
| Ambient humidity |
-35~95%RH |
| Insulation resistance |
50MΩ or more (DC500 megohmmeter) (between charging part and housing) |
| Withstand voltage |
AC 1000V 50/60HZ 1min (between charging part and Housing) |
| Temperature effect |
-30~+65°C: detection distance error ±15% at +23°C |
| -25~+60°C: detection distance error ±10% at +23°C |
| Voltage effect |
6-36V (90-250V) : ±15% of detection distance error |
| 10-30V (220V) : ±10% of detection distance error |
| Protection level |
IP67 (IEC) |
| Material |
Housing: ABS |
| Detection surface: ABS |
Note:Please read the "Precautions" of the product manual before use.
Details
Three-wire
NPN
Normally closed
DC
Features
Reverse power protection, short circuit protection, can be directly connected to the PLC
Economical and simple operation
Long life and high reliability, strong environmental resistance
Red LED reality can detect sensor working status
IP67 protection structure (IEC)
Company history
Our company was founded on May 3, 2016. We have rich research experience and can handle all kinds of non-standard products. At present, our company has established a cooperative relationship with Ken Baojie, and has also customized several products for each company.
Our service
Our company has a professional technical research and development team, which can customize our own products for our customers, so that the products are more stable and fit. Our company adheres to the principle of high quality and low price, considers the customers, provides the most comfortable service, and creates a beautiful purchasing environment for customers. Let the customers come empty-handed and return home.
