High Reliability 2 Wire Inductive Proximity Sensor With Multiple Protection

Name: High Reliability 2 Wire Inductive Proximity Sensor With Multiple Protection
Brand: Zhongde
Price: 1 USD

Quality High Reliability 2 Wire Inductive Proximity Sensor With Multiple Protection for sale

Model Number : LJ8A3-1-Z/DX

MOQ : 100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000only 8day

Place of Origin : China

Brand Name : Zhongde

Certification : CE

Name : 2 Wire Inductive Proximity Sensor

Feature : Multiple Protection

Size : M8

Voltage : DC

Output Method : NPN/PNP

Induction Method : Normally closed

Contact Now

High Reliability 2 Wire Inductive Proximity Sensor With Multiple Protection

Description
The inductive proximity switches can accurately reflect the position and the stroke movement mechanism. Positioning accuracy, operating frequency, service life. They are suitable for harsh environments and easy to install.

Details

Two-wire

NPN/PNP

Normally closed

Parameter

Lag distance	Less than 10% of the detection distance
Detecting objects	Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage	DC : DC 12~24 (6~36V) pulse (p-p) below 10%
voltage	AC : AC 110~220V (36~250V) 50/60Hz
Current consumption	N.P : ≤13mA
	D : ≤0.8mA
	A : ≤1.7mA
Control output	N.P : ≤300mA
	D : ≤200mA
	A : ≤400mA
Loop protection	N.P.D : reverse connection protection, surge absorption, load short circuit protection
Loop protection	A : surge absorption
Ambient temperature	-30~+65°C (no icing, no condensation)
Ambient humidity	-35~95%RH
Insulation resistance	50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage	AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect	-30~+65°C: detection distance error ±15% at +23°C
Temperature effect	-25~+60°C: detection distance error ±10% at +23°C
Voltage effect	6-36V (90-250V) : ±15% of detection distance error
Voltage effect	10-30V (220V) : ±10% of detection distance error
Protection level	IP67 (IEC)
Material	Housing: ABS
Material	Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.

High Reliability 2 Wire Inductive Proximity Sensor With Multiple Protection

Product Tags:

inductive proximity sensor switch

inductance proximity sensor

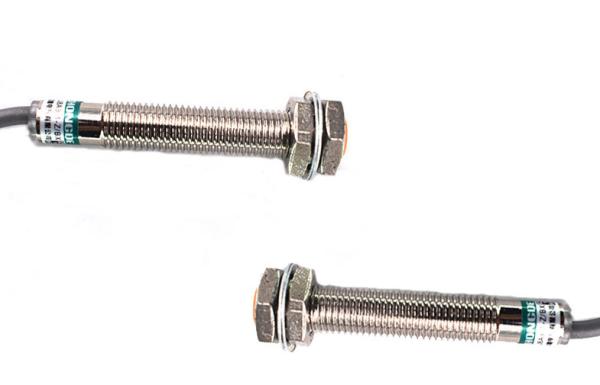

High Reliability 2 Wire Inductive Proximity Sensor With Multiple Protection Images
