Portable Inductive Cylinder Proximity Switch High Repeated Positioning Accuracy

Name: Portable Inductive Cylinder Proximity Switch High Repeated Positioning Accuracy
Brand: Zhongde
Price: 1 USD

Quality Portable Inductive Cylinder Proximity Switch High Repeated Positioning Accuracy for sale

Model Number : LJ12A3-2-J/EZ

MOQ : 100

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000only 8day

Place of Origin : China

Brand Name : Zhongde

Certification : CE

Name : Cylinder Proximity Switch

Feature : Portable

Size : M12

Voltage : AC

Output Method : NPN/PNP

Induction Method : Normally open

Contact Now

Portable Inductive Cylinder Proximity Switch High Repeated Positioning Accuracy

Application
The inductive proximity switch can be used to detect magnetic metal. Non-metallic substances such as liquids or some kinds of dirt do not interact with the magnetic field, so an inductive sensor can operate in wet or dirty conditions.

Two-wire NPN/PNP normally open AC

Parameter

Lag distance	Less than 10% of the detection distance
Detecting objects	Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage	DC : DC 12~24 (6~36V) pulse (p-p) below 10%
voltage	AC : AC 110~220V (36~250V) 50/60Hz
Current consumption	N.P : ≤13mA
	D : ≤0.8mA
	A : ≤1.7mA
Control output	N.P : ≤300mA
	D : ≤200mA
	A : ≤400mA
Loop protection	N.P.D : reverse connection protection, surge absorption, load short circuit protection
Loop protection	A : surge absorption
Ambient temperature	-30~+65°C (no icing, no condensation)
Ambient humidity	-35~95%RH
Insulation resistance	50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage	AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect	-30~+65°C: detection distance error ±15% at +23°C
Temperature effect	-25~+60°C: detection distance error ±10% at +23°C
Voltage effect	6-36V (90-250V) : ±15% of detection distance error
Voltage effect	10-30V (220V) : ±10% of detection distance error
Protection level	IP67 (IEC)
Material	Housing: ABS
Material	Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.

Portable Inductive Cylinder Proximity Switch High Repeated Positioning Accuracy

Product Tags:

inductive type proximity sensor

inductance proximity sensor

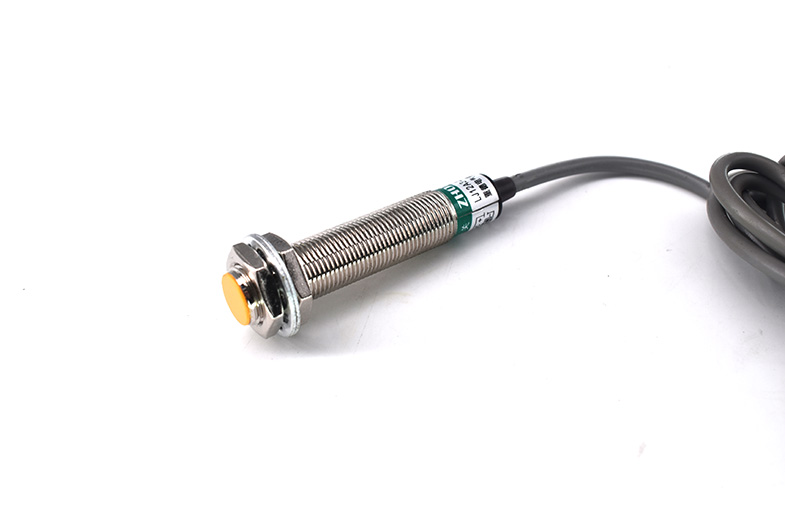

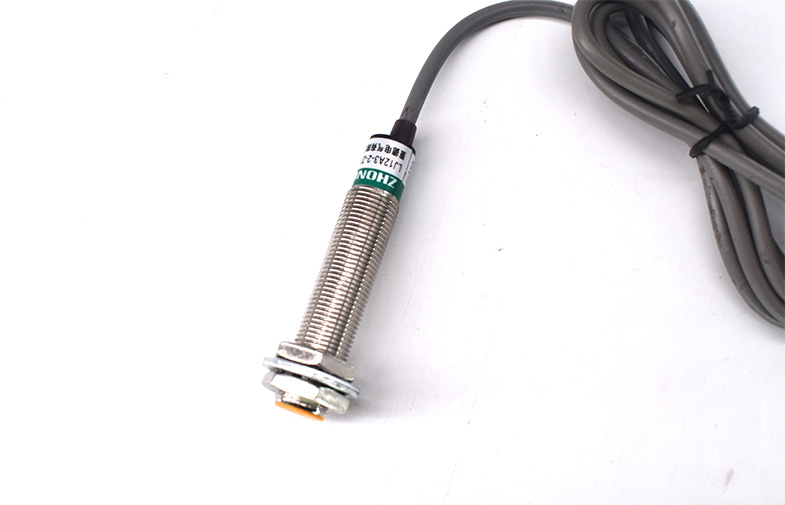

Portable Inductive Cylinder Proximity Switch High Repeated Positioning Accuracy Images
